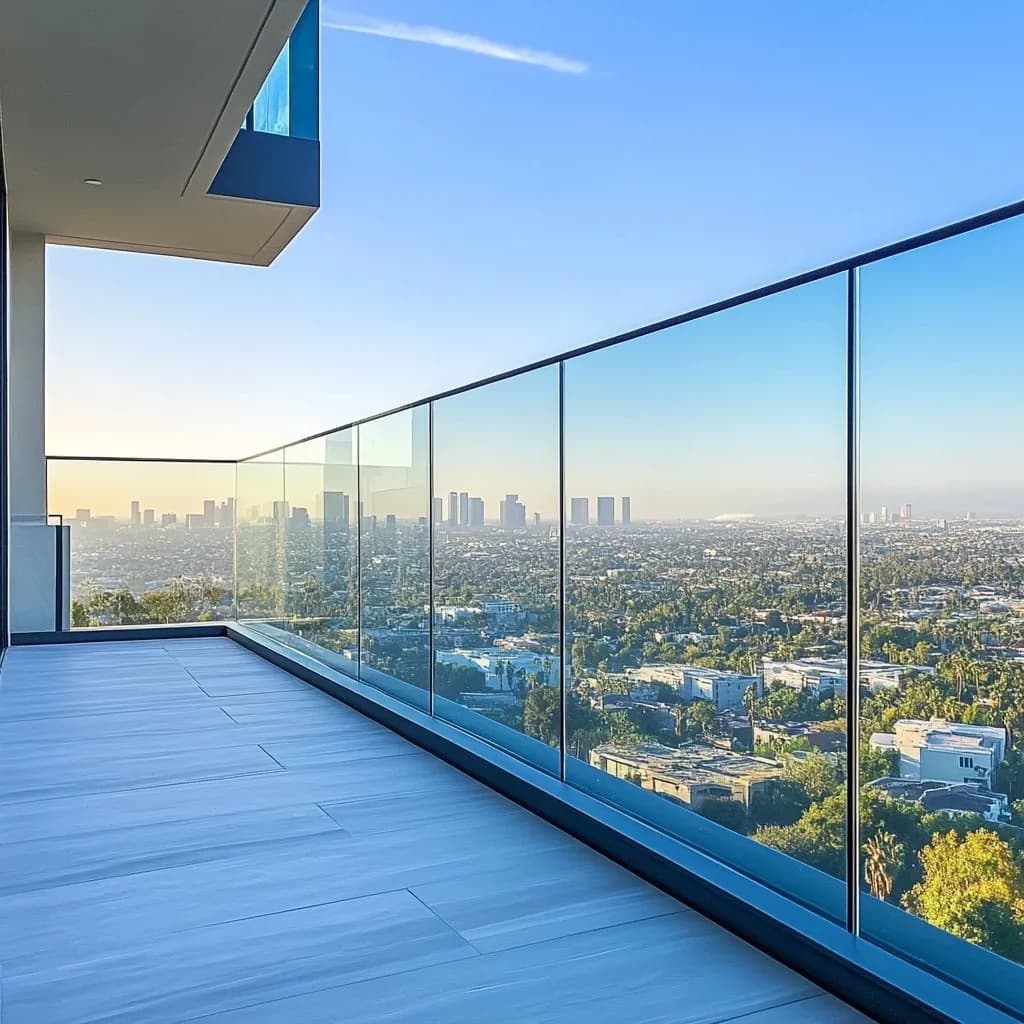

Glass Railing Mounting Methods Comparison: Which System Is Right for Your Project?.

When specifying a frameless glass railing system, the mounting method is as important as the glass itself. Different attachment methods offer distinct advantages in terms of aesthetics, floor space, installation difficulty, and weather protection. This guide compares the five most common methods and helps you choose the right one for your balcony, terrace, or Juliet window.

Top Mount (Surface Mount)

Top mount is the simplest and most DIY-friendly method. The glass panel is secured to the top surface of an existing structure — typically a concrete slab, timber joists, or steel beam — using stainless steel shoes and fasteners.

How it works: A post-fixed base shoe sits flat on the slab surface. Structural glass panels (typically 10–12mm laminated or toughened) insert into the shoe grooves at 90°. Waterproof sealant beneath the shoe prevents water infiltration. Top mount systems like the VisioAir post-fixed glass balustrade offer maximum flexibility for retrofit installations.

Advantages: - No structural drilling or slab weakening required - Retrofit-friendly — works on existing structures - Quick installation (typically 1–2 days for residential balconies) - Lowest technical skill requirement - Easy repairs — individual panels can be replaced without removing the entire system

Disadvantages: - Reduces usable floor space by 80–100mm (thickness of base shoe) - Water pooling risk if slab is not perfectly sloped - Less refined aesthetic — base shoe is visible - Not ideal for high-wind zones without additional support

Building code compliance: Top mount systems must meet EN 1991 wind load calculations. For balconies, typical minimum height is 1,100mm; for terraces, 900mm. The base shoe must be mechanically fixed every 1.2m maximum to prevent uplift in high winds (typically 6–8 fasteners per 3m run).

PONARC product: The VisioAir post-fixed glass balustrade system is designed specifically for top-mounted applications, offering rapid installation and excellent value.

Side Mount (Fascia Mount)

Fascia mounting (also called side fixing) is the premium choice for maximising usable floor space. The glass panels are secured directly to the edge beam or fascia board, with minimal protrusion into the living space.

How it works: Vertical structural posts (typically 40×40mm aluminium or stainless steel) are bolted to the fascia board. Glass panels are held in top and bottom channels that are integral to the posts. The system sits flush or slightly recessed, with no horizontal base shoe visible on the floor.

Advantages: - Maximises floor space — no visible base shoe on the slab - Most refined, contemporary aesthetic - Protects the underlying waterproof membrane — the fascia board bears the load, not the slab - Superior wind resistance — posts are bolted to structural elements - Ideal for buildings in exposed coastal or high-altitude locations

Disadvantages: - Requires precise structural alignment during initial installation - More expensive than top mount (typically 15–25% higher cost) - Retrofit installation is more complex — may require structural alterations - Professional installation mandatory — not DIY-friendly - Cannot be easily removed without affecting the fascia board finish

Building code compliance: EN 1991 wind loads are typically 40–50% lower for fascia-mounted systems (due to better structural support) compared to top mount. Local building control should verify that the fascia board and its fixings can sustain the horizontal load (typically 1.4kN/m for residential balconies). Post spacing is usually 1.2–1.5m.

PONARC product: The EasyMod Mars balcony railing system excels in fascia-mount applications, combining structural robustness with clean design lines.

Channel / Base Shoe Mount

Channel mounting uses a continuous base shoe (or "shoe") that sits on the slab surface, similar to top mount, but with deeper grooves and integrated drainage. This method is common for ground-level terraces and garden barriers.

How it works: A structural aluminium or stainless steel shoe is mechanically fixed to the slab with epoxy anchors every 1.2m. Glass panels (typically 10–12mm) sit in side grooves within the shoe. Internal water drainage channels route any pooled water toward designated drain points. The shoe is typically 60–100mm tall, smaller than traditional top-mount shoes.

Advantages: - Compact footprint — lower profile than traditional top mount - Integrated drainage prevents standing water - Cost-effective for large perimeter installations - Works well for sloped or uneven slabs - Panels can be tilted inward slightly for wind resistance

Disadvantages: - Still occupies 60–100mm floor space - Requires more complex slab preparation (drainage channels) - Not suitable for very high-wind zones without additional lateral bracing - Professional installation recommended for proper alignment

Building code compliance: Channels must comply with EN 1991 wind loads. In high-wind zones, additional lateral bracing between the shoe and structure may be required. Drainage systems must not create trip hazards or pooling in adjacent areas.

PONARC product: The VisioMod frameless glass railings can be configured with channel mounts for enhanced drainage and aesthetic appeal on terraces.

Standoff / Point-Fixed Mount

Point-fixed mounting uses individual aluminium or stainless steel standoff brackets that bolt directly through the glass panel to a structural surface. This method creates a minimalist, contemporary aesthetic with maximum visual transparency.

How it works: Toughened glass panels (typically 12mm minimum) are pre-drilled at top and bottom edges. Structural standoff brackets (spaced 1.5–2m apart) bolt through the holes into the underlying structure (slab, timber frame, or steel). Spacer sleeves within the bolt holes absorb vibration and distribute load. Stainless steel (A4) or galvanised fasteners are used for weather resistance.

Advantages: - Minimal visual obstruction — only thin brackets visible - Contemporary, high-end aesthetic — favoured by architects - No base shoe means maximum usable floor space - Excellent for exposed coastal locations (stainless steel construction) - Individual panel replacement without removing adjacent panels

Disadvantages: - Requires pre-drilled, toughened glass (cannot use laminated or annealed glass) - Highest material cost (typically 30–50% more than top mount) - Complex installation — precise drilling and structural bolt placement essential - Not retrofit-friendly for existing balconies - Cannot accommodate future glass replacement if drilling pattern is damaged - EN 1991 requires specialist engineering calculations

Building code compliance: Each standoff must be calculated for point load conditions. EN 1991 governs wind and impact loads. Standard spacing is 1.5m maximum for residential balconies. Panels must be toughened (EN 12150) to withstand thermal and mechanical stress. Height regulations (1,100mm balconies, 900mm terraces) still apply.

PONARC product: While PONARC specialises in channel and top-mount systems, VisioMod frameless glass railings can be specified with point-fixed details for bespoke architectural projects.

Recessed (Embedded in Slab)

Recessed mounting is the most challenging method, embedding the base shoe or posts into the concrete slab during casting. This creates the cleanest aesthetic — no visible structural elements above the slab surface — but requires coordination during construction.

How it works: A structural rebate (channel) is formed in the concrete slab during casting, sized to accept a stainless steel or aluminium post/shoe assembly. After concrete cures, the post is inserted, secured with epoxy anchors, and glass panels are installed. Sealant fills the gap between the slab edge and the post.

Advantages: - Exceptional aesthetic — virtually invisible at floor level - Maximum usable floor space - Excellent water management — drainage integrated into the concrete rebate - Strong wind resistance — posts embedded in structural concrete - Prestigious, high-end appearance

Disadvantages: - Only possible during new construction or major structural works - Requires precise coordination between structural engineer and railing supplier - If incorrectly installed, very difficult to rectify - Higher cost due to engineering and concrete work - Sealant degradation over time may require professional re-sealing - Future modifications to the railing are highly complex

Building code compliance: Recessed systems must include detailed structural drawings showing anchor placement, concrete strength, and water management. EN 1991 applies. Professional structural engineer input is mandatory. Detailed inspection during concrete casting is essential.

PONARC product: VisioMod frameless systems can be specified for recessed installations on major residential or commercial projects, provided structural drawings are coordinated with the concrete contractor.

Building Code Requirements

All glass railing systems must comply with local building codes and European standards:

EN 1991 (Wind loads): Railing systems must resist characteristic wind pressures. For residential balconies, typical pressures are 0.5–1.5kN/m² depending on location. Structural calculations must verify that all fasteners, posts, and glass panels can sustain these loads.

EN 12600 (Pendulum impact test): Tempered or laminated glass must resist impact without shattering dangerously. Safety glass is mandatory; annealed glass is not permitted.

Height requirements: Balconies typically require 1,100mm minimum height; terraces and garden barriers 900mm. Height is measured from the floor to the top of the glass panel (including any top rail).

Balustrade infill: Glass must be toughened (EN 12150) or laminated with a toughened outer pane. Laminated glass prevents shatters; toughened glass breaks safely into small, non-injurious fragments.

Spacing and permeability: Openings between panels or rails must not permit a 100mm sphere to pass through (child safety). Horizontal rails must not create footholds that could aid climbing.

Local building control offices should be consulted during the design phase to confirm exact requirements for your jurisdiction.

Which Method Should You Choose?

Choose Top Mount if: You're retrofitting an existing balcony, prioritise ease of installation, and have a limited budget. The VisioAir post-fixed glass balustrade is ideal for this scenario.

Choose Fascia Mount if: Floor space is at a premium, you want the cleanest aesthetic, or the building is in a high-wind location. The EasyMod Mars balcony railing system delivers excellent structural performance and refined appearance.

Choose Channel Mount if: You're installing a large perimeter system (garden barrier, wide terrace) and want better water management than traditional top mount. VisioMod systems work well with channel mounting.

Choose Point-Fixed Mount if: You demand maximum transparency and architectural purity, and budget permits. This method suits prestigious commercial or residential projects.

Choose Recessed Mount if: You're building new, have full structural coordination, and want the ultimate finished appearance. This is the most challenging method but delivers the most refined result.

In all cases, consult with a structural engineer and verify local building code requirements before purchase. PONARC's technical team can guide you through system selection and specification.
